Clamp components

CONNECTION CLAMPS

own manufacture since 1923

Electroniquel earthing clamps are manufactured with a brass body, steel / Zn, steel / Cu, copper and tinned copper with a steel and stainless steel flange. They comply with the current rule. Brass is a rich alloy in copper. Such a copper alloy allows electrical conductivity while exhibiting good mechanical strength and high corrosion resistance. These clamps must ensure a very good tightening torque, buried in the earthing network, supporting the seasonality of the soil, its different degrees of acidity, etc. Our earthing clamps allow the union between different conductors of the earthing network, of the same or of different sections . We also have specific clamps for joining the conductors to the ground rods, metal structures that require earthing instalaltions.

connection clamps

GDP connection clamps

GDP18H

GDP18i

technical drawing.

reference GDP 18H Brass

steel M8 | Ø 18,3MM | 0,203 Kg | 35 a 95 mm2

reference GDP 18i Brass

stainless M10| Ø 18,3MM | 0,243 Kg | 35 a 95 mm2

technical drawing

GDP 21H

GDP 21i

technical drawing.

reference GDP 21 H Brass

steel M10| Ø 18,3MM | 0,384 Kg | 70 a 185 mm2

reference GDP 21i Brass

stainless steel M10| Ø 18,3MM | 0,384 Kg | 70 a 185 mm2

technical drawing

GAB connection clamps

GAB 18I

GAB 18H

GAB 15H

reference GAB 18I Brass

stainless steel M10| Ø 18,3MM | 0,247 Kg | 25 a 95 mm2

reference GAB 18H Brass

Steel M8| Ø 18,3MM | 0,206 Kg | 25 a 95 mm2

reference GAB 15 H Brass

Steel M8| Ø 14,6 MM | 0,101 Kg | 25 a 95 mm2

GAB 21I

GAB 21H

technical drawing.

reference GAB 21I Brass

stainless steel M10| Ø 20,3MM | 0,296 Kg | 70 a 185 mm2

reference GAB 21H Brass

Steel M10| Ø 20,3MM | 0,296 Kg | 70 a 185 mm2

technical drawing

Gen 30 connection clamps

GEN 30H

GEN 30 I

technical drawing.

reference GEN 30H Brass

Steel | Ø 20,3MM | 0,119 Kg | 30 x 3 mm

reference GEN 30i Brass

stainless steel | Ø 20,3MM | 0,122 Kg | 30 x 3 mm

technical drawing

GEN connection clamps

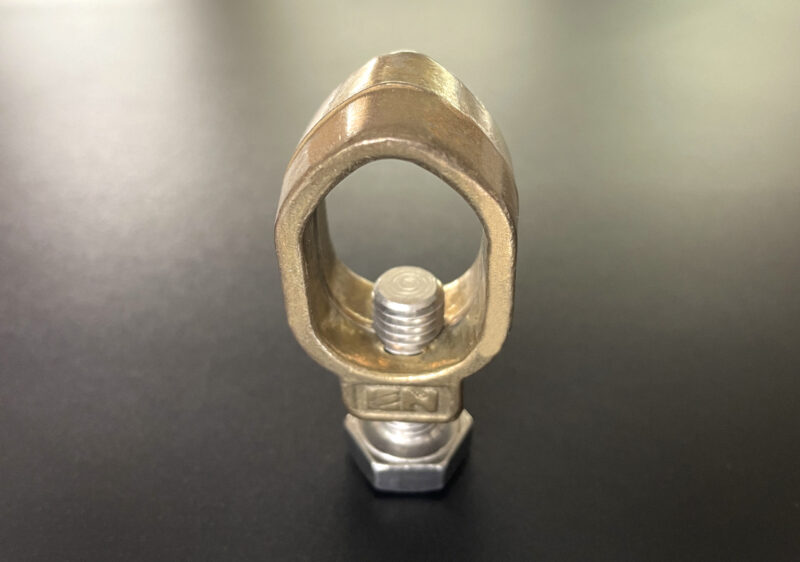

GEN 15 H

GEN 58 H

gen 58 i

reference GEN 15 H BRASS

BRASS | Ø 14,6MM | 0,042 Kg | hasta 70 mm2

reference GEN 58 H BRASS

BRASS | Ø 16 MM | 0,04 Kg | hasta 70 mm2

reference GEN 58 i BRASS

BRASS | Ø 16 MM | 0,04 Kg | hasta 70 mm2

GEN 18 H

GEN 18 I

gen 21 I

reference GEN 18 H BRASS

BRASS | Ø 18,3 MM | 0,085 Kg | hasta 70 mm2

reference GEN 18 I BRASS

BRASS | Ø 18,3 MM | 0,09 Kg | hasta 70 mm2

reference GEN 21 I BRASS

BRASS | Ø 20,3 MM | 0,088 Kg | hasta 95 mm2

GEN 21 H

technical drawing.

reference GEN 21 H BRASS

BRASS | Ø 20,3 MM | 0,088 Kg | hasta 95 mm2

technical drawing

PATGA 14 connection clamps

PATGA 14 H

PATGA 14 i

technical drawing

reference PATGA 14 H BRASS

BRASS | Ø 14,6 MM | 0,09 Kg | 25 a 70 mm2

reference PATGA 14 I BRASS

BRASS | Ø 14,6 MM | 0,10 Kg | 25 a 70 mm2

technical drawing

GSC connection clamps

GSC 15 zn

grapa GSC 15 cu

reference GSC 15 ZN STEEL/ZN

STEEL/ZN | Ø 16MM | 0,128 Kg | HASTA 150 mm2

reference GSC 15 CU STEEL/ZN

STEEL/CU | Ø 16MM | 0,128 Kg | HASTA 150 mm2

GDT connection clamps

GDT 18H

GDT 18I

GDT 21H

reference GDT 18H brass

STEEL m10 | 0,242 Kg | 35 a 95 mm2

reference GDT 18I brass

STAINLESS | 0,242 Kg | 35 a 95 mm2

reference GDT 21H brass

STEEL m10 | 0,390 Kg | 70 a 185 mm2

GDT 21I

technical drawing

reference GDT 21I brass

STAINLESS | 0,390 Kg | 70 a 185 mm2

technical drawing

GDM connection clamps

GDM 15H

gdm 15i m10

gdm 15i M12

reference GDM 15H brass

STEEL m10 | 0,159 Kg | 35 a 95 mm2

reference GDM 15I M10 brass

STAINLESS m10 | 0,159 Kg | 35 a 95 mm2

reference GDM 15I M10 brass

STAINLESS m12 | 0,20 Kg | 35 a 95 mm2

GSM connection clamps

gsm 15 H

gsm 15i M10

Gsm 15i M12

REFERENCE GSM 15 H brass

STEEL m10 | 0,102 Kg | 35 a 70 mm2

REFERENCE GSM 15 M 10 brass

STAINLESS m10 | 0,102 Kg | 35 a 70 mm2

REFERENCE GSM 15 M 12 brass

STAINLESS m10 | 0,102 Kg | 35 a 70 mm2

GM connection clamps

GM 15H

GM 15I

gm 18 h

reference 15 H brass

STEEL M6 | 0,052 Kg | 25 A 70 mm2

reference 15 I brass

STAINLESS m10 | 0,102 Kg | 35 a 70 mm2

reference 18 H brass

STEEL M8 | 0,112 Kg | 70 A 95 mm2

GM 18I

technical drawing.

reference GM 18 I brass

STAINLESS m8 | 0,112 Kg | 70 a 95 mm2

technical drawing

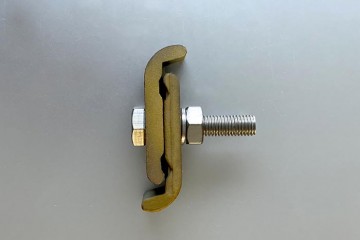

GTR1C connection clamps

CTR1CHM10

GTR1CIM10

GTR1CM12

REFERENCE EFI GTR1CHM10 brass

STEEL m10 | 0,3 Kg | HASTA 1 X 185 mm2

REFERENCE EFI GTR1CIM10 brass

STAINLESS m8 | 0,3 Kg | HASTA 1 X 185 mm2

REFERENCE EFI GTR1CM12 brass

STAINLESS m8 | 0,4 Kg | HASTA 1 X 185 mm2

GTPD2C63/GTPD2C90 GM connection clamps

GTPD2C63HM10

GTPD2C63IM10

GTPD2C63IM12

REFERENCE GTPD2C63HM10 brass

STEEL m10 | 0,58 Kg | UNTIL 2 X 185 mm2

REFERENCE GTPD2C63IM10 brass

INOX m10 | 0,58 Kg | UNTIL 2 X 185 mm2

REFERENCE GTPD2C63IM12 brass

INOX m12 | 0,59 Kg | UNTIL 2 X 185 mm2

GTPD2C90HM10

GTPD2C90IM10

GTPD2C90IM12

REFERENCE GTPD2C90HM10 brass

STEEL m10 | 0,73 Kg | UNTIL 2 X 185 mm2

REFERENCE GTPD2C90IM10 brass

INOX m10 | 0,73 Kg | UNTIL 2 X 185 mm2

REFERENCE GTPD2C90IM12 brass

INOX m12 | 0,77 Kg | UNTIL 2 X 185 mm2

GTPD2C31 GM connection clamps

GTPD2C31IM10

GTPD2C31HM10

GTPD2C31IM12

REFERENCE GTPD4C63HM10 brass

STEEL m10 | 0,48 Kg | UNTIL 4 X 185 mm2

REFERENCE GTPD4C63HM10 brass

INOX m10 | 0,48 Kg | UNTIL 4 X 185 mm2

REFERENCE GTPD4C63IM12 brass

NOX m12 | 0,5 Kg | UNTIL 2 X 185 mm2

GER connection clamps

GER10H

GER10INOX

GER11H

REFERENCE GER10H brass

STEEL | 0,07 Kg | UNTIL 50 mm2

REFERENCE GER10INOX brass

INOX | 0,07 Kg | UNTIL 50 mm2

REFERENCE GER11H brass

STEEL m10 | 0,48 Kg | UNTIL 70 mm2

GER11i

GER14H

GER14 I

REFERENCE GER 11i brass

STEEL | 0,10 Kg | UNTIL 70 mm2

REFERENCE GER 14H brass

STEEL | 0,18 Kg | UNTIL 120 mm2

REFERENCE GER 14I brass

INOX | 0,48 Kg | UNTIL 70 mm2

GCR connection clamps

GCR10H

GCR10I

GCR11H

REFERENCE GCR10H brass

STEEL | 0,07 Kg | UNTIL 50 mm2

REFERENCE GCR10I brass

INOX | 0,07 Kg | UNTIL 50 mm2

REFERENCE GCR11H brass

STEEL | 0,10 Kg | UNTIL 70 mm2

GCR11I

GCR14H

GCR14I

REFERENCE GCR14I brass

INOX | 0,18 Kg | UNTIL 120 mm2

REFERENCE GCR14H brass

STEEL | 0,18 Kg | UNTIL 120 mm2

REFERENCE GCR14I brass

INOX | 0,18 Kg | UNTIL 120 mm2

GCR16I

GCR16H

REFERENCE GCR16I brass

STEEL | 0,23 Kg | UNTIL 150 mm2

REFERENCE GCR16H brass

INOX | 0,23 Kg | UNTIL 150 mm2

GDR connection clamps

GDR10H

gdr10i

GDR11H

REFERENCE GDR10H brass

STEEL | 0,08 Kg | UNTIL 50 mm2

REFERENCE GDR10I brass

INOX | 0,23 Kg | UNTIL 150 mm2

REFERENCE GDR11H brass

STEEL | 0,10 Kg | UNTIL 70 mm2

gdr14i

GDR11I

GDR14H

REFERENCE GDR14I brass

STEEL | 0,25 Kg | UNTIL 120 mm2

REFERENCE GDR11I brass

INOX | 0,10 Kg | UNTIL 70 mm2

REFERENCE GDR14H brass

STEEL | 0,25 Kg | UNTIL 120 mm2

gdr16h

gdr16I

REFERENCE GDR16H brass

STEEL | 0,303 Kg | UNTIL 150 mm2

REFERENCE GDR16I brass

INOX | 0,303 Kg | UNTIL 150 mm2

GTE connection clamps

GTE 10H

gte 10i

gte 11h

REFERENCE GTE 10H brass

STEEL | 0,044 Kg | UNTIL 50 mm2

REFERENCE GTE 10I brass

INOX | 0,044 Kg | UNTIL 50 mm2

REFERENCE GTE 11H brass

ACERO | 0,303 Kg | UNTIL 150 mm2

GTE 11I

GTE 14H

gte 14i

REFERENCE GTE 11i brass

INOX | 0,10 Kg | UNTIL 70 mm2

REFERENCE GTE 14H brass

STEEL | 0,25 Kg | UNTIL 120 mm2

REFERENCE GTE 14I brass

INOX | 0,25 Kg | UNTIL 150 mm2

gte 16i

gdr16h

REFERENCE GTE 16I brass

INOX | 0,34 Kg | UNTIL 150 mm2

REFERENCE GTE 16h brass

INOX | 0,34 Kg | UNTIL 150 mm2

BIMETALIC CONECTORS

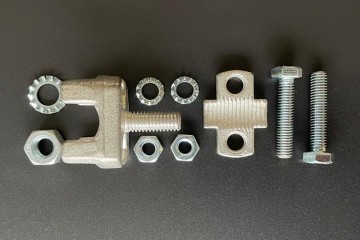

GBBT 150-1

GBBT 95-1

GBBT50-1

REFERENCE Gbbt 150-1 brass/Tin

brass/Tin| 0,17 Kg | UNTIL 150 mm2

REFERENCE Gbbt 95-1 brass/Tin

brass/Tin| 0,11 Kg | 95 mm2

REFERENCE Gbbt 50-1 brass/Tin

brass/Tin| 0,06 Kg | UNTIL 50 mm2

GBBT 95-2

GBBT 50-2

GBBT 240-1

REFERENCE Gbbt 95-2 brass/Tin

brass/Tin| 0,15 Kg | 2x95 mm2

REFERENCE Gbbt 50-2 brass/Tin

brass/Tin| 0,07 Kg | 2x50 mm2

REFERENCE Gbbt 240-1 brass/Tin

brass/Tin| 0,36 Kg | 240 mm2

GBBT 240-2

GBBT 150-2

REFERENCE Gbbt 240-2 brass/Tin

brass/Tin| 0,57 Kg | 2x240mm2

REFERENCE Gbbt 150-2 brass/Tin

brass/Tin| 0,27 Kg | 2x150mm2

BOLT GCAH1

BOLT GCAH2

TECHNICAL DRAWING

REFERENCE GCAH1 brass

brass | 0,037 Kg | 2x35mm2

REFERENCE GCAH2 value

brass | 0,089 Kg | 2x70 mm2

TECHNICAL DRAWING

BOLT GCB1

bolt GCB2

TECHNICAL DRAWING

REFERENCE GCB1 brass

brass | 0,033 Kg | 16 - 35 mm2

REFERENCE GCB2 brass

brass | 0,080 Kg | 50 - 70 mm2

TECHNICAL DRAWING

BOLT GCA 1

BOLT GCA 2

BOLT GCA 3

REFERENCE GCA1 brass

brass | 0,031 Kg | UNTIL 35 mm2

REFERENCE GCA2 brass

brass | 0,049 Kg | UNTIL 70 mm2

REFERENCE GCA3 brass

brass | 0,049 Kg | UNTIL 70 mm2
